The pressure sensor has been calibrated and there is a linear transmission between the pressure and the voltage output
The function, as follows:
VOUT = (range P×0.8+ 0.1 ) x VDD
The voltage output is the proportional output, with VDD = 1.8~5.5V.
The pressure output characteristic diagram is as follows (range 10 Kpa, power supply 5V):
Product overview

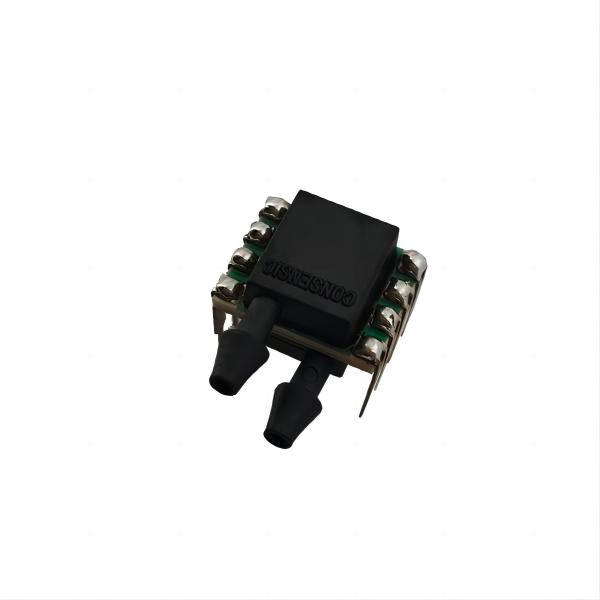

CPS510 The Analog Output Series is a small, all-ceramic, PCB-mounted pressure sensor. CPS510 Analog output series of products packaged in the pressure sensor and signal conditioning chip, the sensor uses a unique algorithm to achieve multi-order temperature compensation, to provide with the applied pressure into.The precise, high-level ratio simulates the output signal.
CPS510 The analog output series has low cost, high performance, good linearity, repeatability and stability, and high sensitivity. Use onboard packaging, convenient for customers to use.
Product characteristics
> All-ceramic structure, corrosion resistance
> High sensitivity, high stability, and high reliability
> Differential pressure and gauge pressure are optional
> Operating temperature range-20 to 85℃
> PCB onboard packaging
> Digital or analog output
| parameter | minimum | typical case | maximum | unit | remarks |
| service voltage | 1.8 | 5 | 5.5 | V | |
| supply current | | 1.7 | | mA | 25℃ |
| Pressure range | 0~1 ,5 ,10 ,20 ,40 | KPa | Table pressure or differential pressure |
| pressure medium | Dry, noncorrosive gas | |
| Overload pressure | 2× | | |
| storage temperature | -40 | | +125 | ℃ | |
| working temperature | -20 | | +85 | ℃ | |
| output voltage | 10% | | 90% | V SUPPLY | service voltage |
| response time | | 3 | | ms | |
| stabilization time | | 10 | | ms | |
| accuracy | | | ±1.5 | %Span | |
| long term stability | | | ±0.2% | %FS | |
